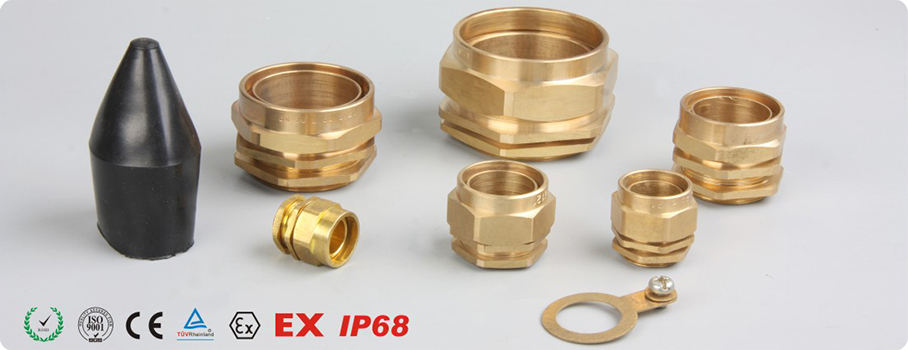

BW鎧裝電纜接頭公制螺紋M型
鎧裝電纜接頭BW系列類型:BW型鎧裝電纜材料:黃銅鍍鎳（未鍍鎳)標準:BS6121
防護等級:IP30
溫度:-80℃到+600℃
螺紋選擇:公制螺紋，美制螺紋，圓錐管制螺紋( BSP）和德制螺紋
應用:適用于各種類型的電源電纜在干燥室內使用配件:可用匹配配件如PVC防松螺母以及接地片功能:BW電纜通過鎧裝線提供了機械電纜保持性和電纜連續(xù)性。
| Gland?size | Thread?Size"C" | Minimum?length?of?Thread"D" | Cable?Range | ||
| Metric | NPT | Max"A" | Max"B" | ||
| BW20S | M20 | 1/2" | 10 | 11.5 | 15.5 |
| BW20L | M20 | 1/2" | 10 | 14 | 20.5 |
| BW-25S | M25 | 3/4" | 10 | 18 | 24 |
| BW-25L | M25 | 3/4" | 10 | 20 | 27 |
| BW-32S | M32 | 1" | 10 | 26.3 | 33.5 |
| BW-32L | M32 | 1" | 10 | 26.3 | 33.5 |
| BW-40S | M40 | 1.1/4" | 13 | 31.5 | 39.5 |
| BW-40L | M40 | 1.1/4" | 13 | 32 | 40 |
| BW-50S | M50 | 1.1/2" | 13 | 38.2 | 46.3 |
| BW-50L | M50 | 2" | 13 | 44 | 52.6 |
| BW-63S | M63 | 2" | 14 | 50.1 | 59 |
| BW-63L | M63 | 2.1/2" | 14 | 56 | 65.3 |
| BW-75S | M75 | 2.1/2" | 15 | 62 | 71.6 |
| BW-75L | M75 | 3" | 15 | 68 | 78 |
| BW-90 | M90 | 3" | 20 | 80.5 | 91 |
